amplifiers Schwaiger BN 2212 531

Schwaiger BN 2212 531

Brand: Schwaiger

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 16,40

BN 2212 531

Broadband and Booster Amplifier (18 dB)

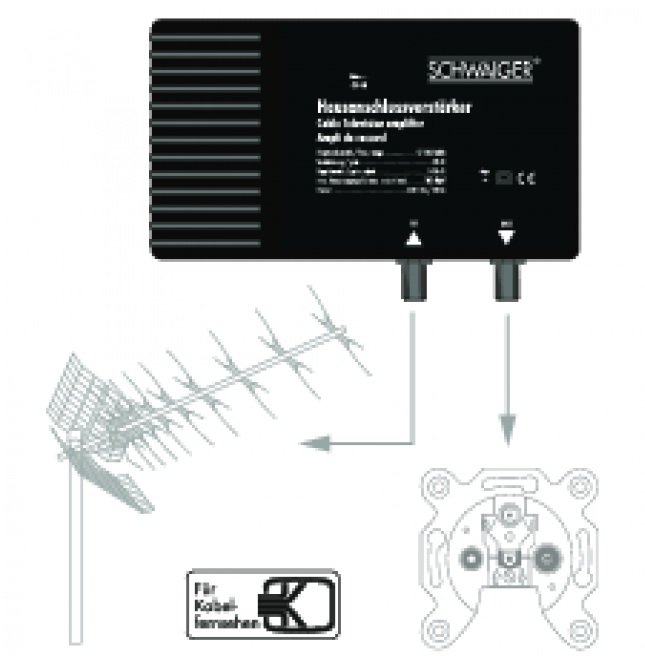

This SCHWAIGER® broadband cable and repeater amplifier comes in small distribution systems are used. It is used in a broadband network at the house transfer point or as post amplifier in CATV. In overdrive (distorted image) due to strong signal at the interconnection point, the level control can be adjusted as needed.

  • Amplifier for use at the interconnection point in broadband cable networks
  • Use as a post amplifier in CATV possible
  • Built level control

TECHNICAL SPECIFICATIONS

Power consumption 2 W in operation
Dimension

(height) 78 mm

(width) 140 mm

(depth) 38 mm

Gain (typical) 18 dB
Frequency range 47 - 862 MHz
Output level (max.) 105 dB microvolts (IM 3 DIN 45004 B)
Power supply 230 V
Weight 385 g
Remote powering 50 - 60 Hz
Level control 0-20 dB
Noise figure 5 dB
Connections 2 x F socket
SKU BN 2212 531
