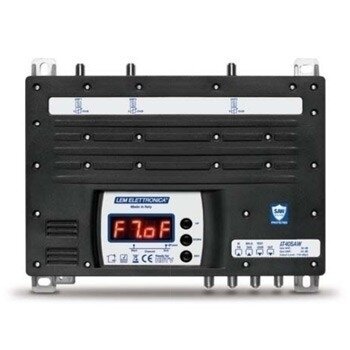

LEM ELETTRONICA AT 406 SAW

Programmable amplifier 40 dB

  • UHF inputs Lte protected by SAW FILTERS 470... 790 MHz
  • Gain 40 dB / 105 dBμV**
  • Low noise < 6dB
  • AUTOLEVELING function for self-aligning UHF clusters
  • USER PASSCODE
  • Programmable through unit key

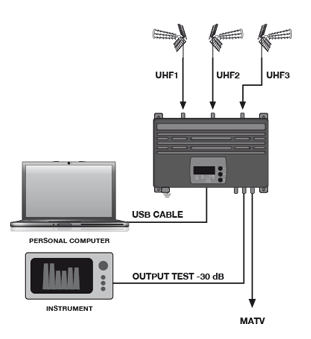

  • Pc Windows and Tablet Android programmable
  • 2 UHF inputs for 4 selectable configurations
  • Die casting chassis
EAN CODE 805604566
NUMBER OF UHF INPUTS 2x (470... 790 MHz)
NUMBER OF VHF INPUTS 1 BI/FM (40... 108 MHz) 1 BIII/DAB (170... 320 MHz)
NUMBER OF OUTPUTS
NUMBER OF PROGRAMMABLE CLUSTERS 6
NUMBER OF CHANNELS PER CLUSTER 1... 6 (8... 48 MHz) 60 cH
INPUT CONFIGURATIONS 1 X 1 INPUT 3 X 2 INPUTS UHF1  UHF2
6  0
5  1
4 2
3 3
INPUT ATTENUATORS dB VHF 0...-15 UHF 0... -20
CLUSTER GAIN ADJUSTER dB  0... -30
MAX UHF INPUT LEVEL dBμV  100* / 105**
VHF GAIN dB 35
UHF GAIN dB 40
MAX OUTPUT LEVEL dBμV 119* / 124**
NOISE FIGURE dB VHF < 6,0 UHF < 6,0
CLUSTER SELECTIVITY +/- 10 MHZ dB 12
RETURN LOSS IN/OUT dB >12
TEST OUTPUT 1 (-30 dB)
REMOTE POWER SUPPLY VHF-UHF INPUTS 12V / 100 mA 24 V / 100 mA
POWER SUPPLY 230 VAC +/-10% 12W (External power supplier DC 7,5 Volt 3A)
DIMENSIONS mm 247 x 200 x 40
