EMP Multiswitch MS17/20 PIU-6

EMP Multiswitch MS17/20 PIU-6

Brand: EMP-Centauri

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 267,30
Check Shipping price

Add to the Favourites list

Currently not available, Out of stock
   Set up Watch Dog on this item here.

Interested in this product ?

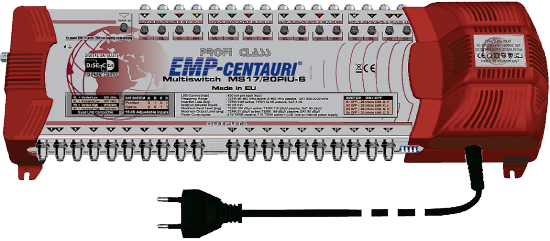

 EMP Centauri Multiswitch MS 17/20 PIU-6

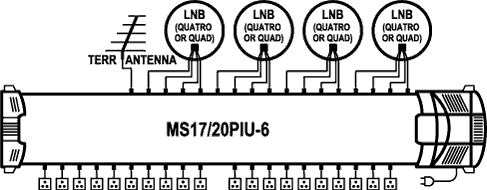

17in/20out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 20 users

Parameter Condition Value
Frequency range LNB inputs 950-2300 MHz
Terr. input 5-862 MHz (passive)
40-862 MHz (active)
Outputs 5-2300 MHz (passive)
40-2300 MHz (active)
Control DiSEqC 1.0 (2.0) commands
Insertion loss Sat. 4 dB avg
Terr. passive 24 dB avg
Terr. active 9 dB avg
Sat. inputs isolation Between V/H polarisations 20 dB min
Between low/high bands 20 dB min
Between sat. systems 25 dB min
Maximum input level* Sat. 90 dBµV avg**
Terr. 100 dBµV avg (passive)
90 dBµV avg (active)
Maximum output level* Sat. 86 dBµV avg
Terr. 76 dBµV avg (passive)
81 dBµV avg (active)
Power consumption From each receiver 75 mA (18 V)
From internal power supply 4.5 W (passive)
6.5 W (active) + LNB
Terr. preamplifier supply 150 mA max (12 V DC)
Dimensions (w,d,h) 47.0 x 15.2 x 8.7 cm
(power cord length 130 cm)
Temperature range -30 ~ +70 °C
