COAX cables Cable RG6U BC TRISHIELD ( 250m ) - White

Cable RG6U BC TRISHIELD ( 250m ) - White

Brand: DVBMarket

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
roll/s
Price per unit:
Total price:
Price is excluding VAT !
€ 52,50

Product description

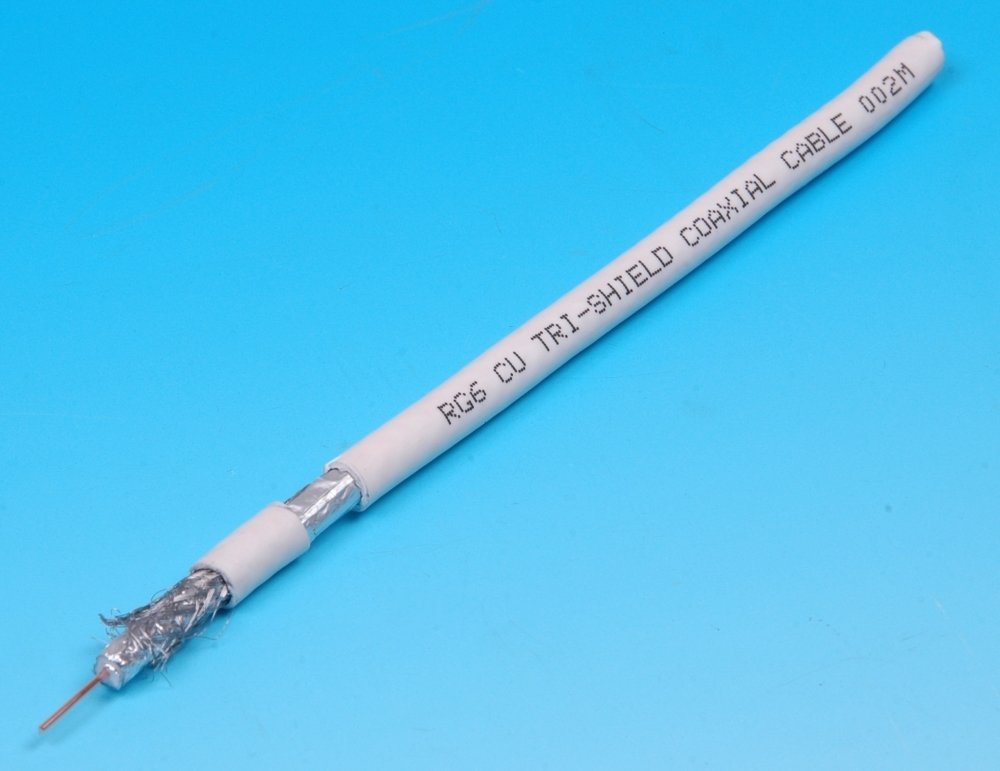

High quality coaxial cable.

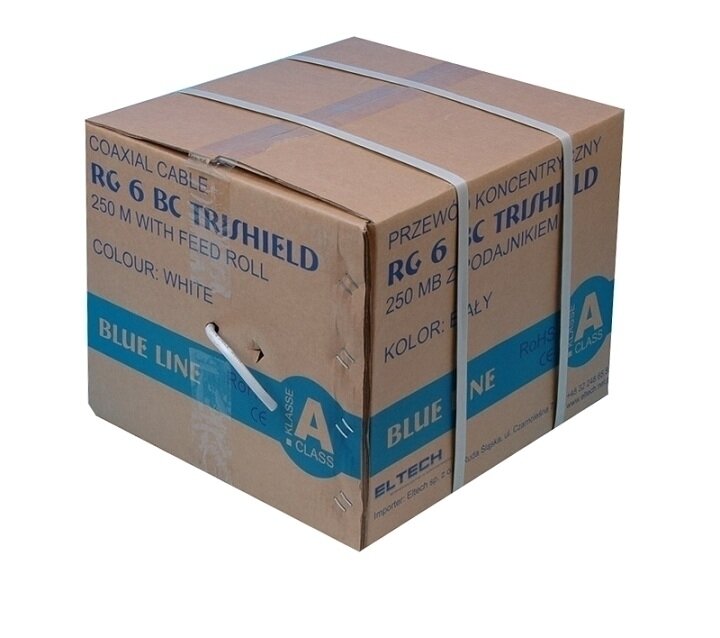

250m white coaxial cable placed in carton with feeder which enable to unroll wire in comfortable way.

Application for terrestrial , satellite and cable installations, particularly used for collective installations.

Technical parameters:


colour:  white


Dimension :
Jacket, mm : 7.04, PVC (ROHS rated PVC ):

Conductor, mm: 1,02 Bare Copper

Insulation, mm: 4,57 Foam PE

Shielding, mm: Bonded Aluminum Foil (T-0.051, W-18)

Braiding, Coverage 0,12x5X 16 AL wire ( coverage : 61 % )

Second shieldding, mm Al/PET ( T-0,025,W-20 )

Shielding >  100dB

Impedance : 75 Ohm

Range of work temperrature -40°C- +70°C

Nominal Capacitade :50+/3,0pF

Inner conductor,Ohms/km – 21 Ohms/km

Outer conductor,Ohms/km – 38 Ohms/km

Electrical requirements
attenuation at 20°C, dB/100m

pri 50 Mhz: 4,77 dB
pri 200 MHz:8,25 dB
pri 400 MHz:12,92 dB
pri 800 MHz:17,80 dB
pri 1000 MHz:19,94 dB
pri 2150 MHz:29,96 dB
