Optibox evo eztv
Brand: OPTIBOX
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 27,60 |
| Check Shipping price |
- Full HD Digital DVB-S2 receiver
- 5000 channels memory space
- 8 favorite channel groups
- DiSEqC 1.0/1.2 and USALS supported
- Multi-Language - Audio / Teletext / Subtitle - support
- Electronic Program Guide (EPG)
- External USB DVD drive support*
- Multi Channel search mode: automatic, manual, network and blind search
- Timer function supported
- Two High Speed USB2.0 connections
- Multi-games support
- USB WIFI Support (YouTube ,Weather forecast, RSS News, Picaso, Google map)
- Conax CA (optional)
- Support 3G Internet
- DC 12V Power Supply
Technical Specifications
TUNER
Input Frequency: 950~2150MHz
Loop Out Frequency: 950~2150 MHz
Input Level: -65~ -25 dBm
Input Impedance: 75Ω
LNB Power : 13V/18V/OFF, Imax = 350mA
CHANNEL DECODING
Waveform: QPSK/8PSK
Roll Off Factor: 0.35
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, Automatic
Reed Solomon: 204, 188, t = 8
Symbol Rate: 2.0 ~ 45 MS/s
DEMULTIPLEXER
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 72Mbps
VIDEO DECODING
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML
Aspect Ratio: 4:3, 16:9
Video Resolution: (1080p,1080i, 720P and 576P)
FOR PAL AND NTSC
AUDIO DECODING
Standard: ISO/IEC 13818-3
Audio Channel: Mono, Dual-channel and Stereo
Sampling Frequency: 32, 44.1, 48KHz
Decoding: MPEG-1 & MPEG-2 layer I and II
MEMORY
Flash Memory: 8MB
Memory: 2048MB AV OUTPUT
Video De-emphasis: CCIR REC.405-1, 625LINES
Video Bandwidth: 5.5MHz
Video Output Impedance: 75Ω
Video Output Level: 1.0Vp-p
Audio Output Frequency: 20Hz ~ 20KHz
Audio Output Impedance: Low
IR Receiver: 38KHz
RF Input: F-type, connector
3.5headphone jack 1: 1 Left Audio,1 Right Audio,1 Video
3.5headphone jack 2: RS232,11.52Kpbs
HDMI Output
Double USB: support USB WIFI
CA slot
Mini USB: extended display as LCD or 4 digital LED

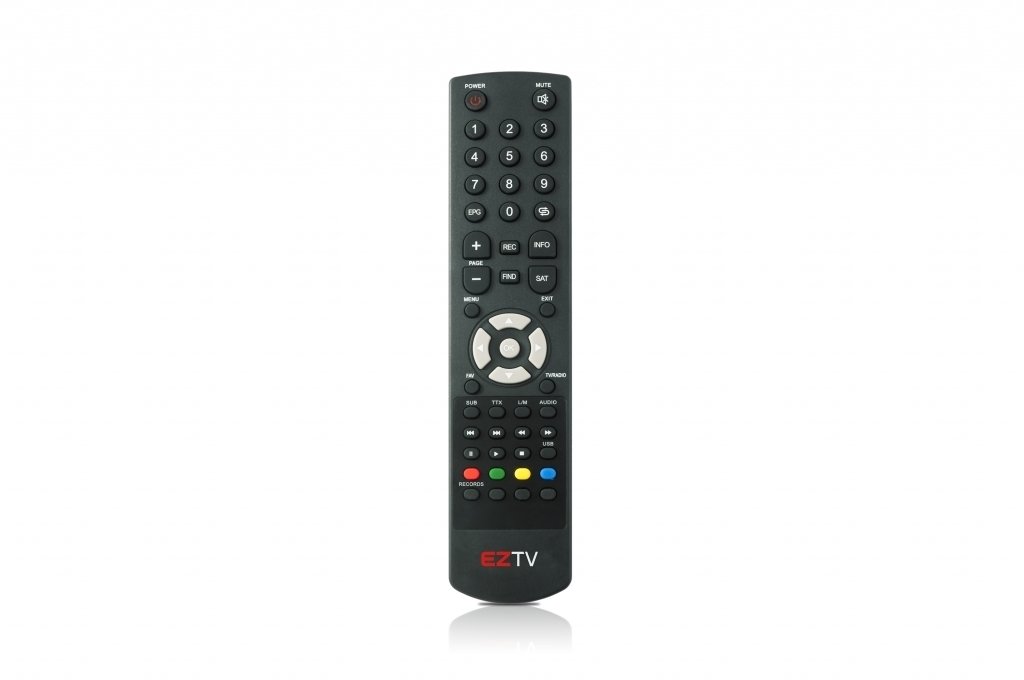

RCU
Category: IR(Carrier 38KHz)
Battery: 2x1.5V
POWER
Input Voltage: DC12V ,1.5A
Power Consumption: 18Wmax
AMBIENT
Operation Temperature: 0~50ºC
Size: 69mm × 114mm × 20mm
Weight: 0.5 Kg
