Promax RANGER Neo + is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
OPERATION MODES
Hybrid operation: 7" touch screen or conventional buttons
DIGITAL STANDARDS
ISDB-T/Tb
QAM annex B
DVB-C
DVB-S, DVB-S2, DVB-S2 multistream
ISDB-T/Tb
DSS, ACM/VCM/CCM
VIDEO CODECS
MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS
MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

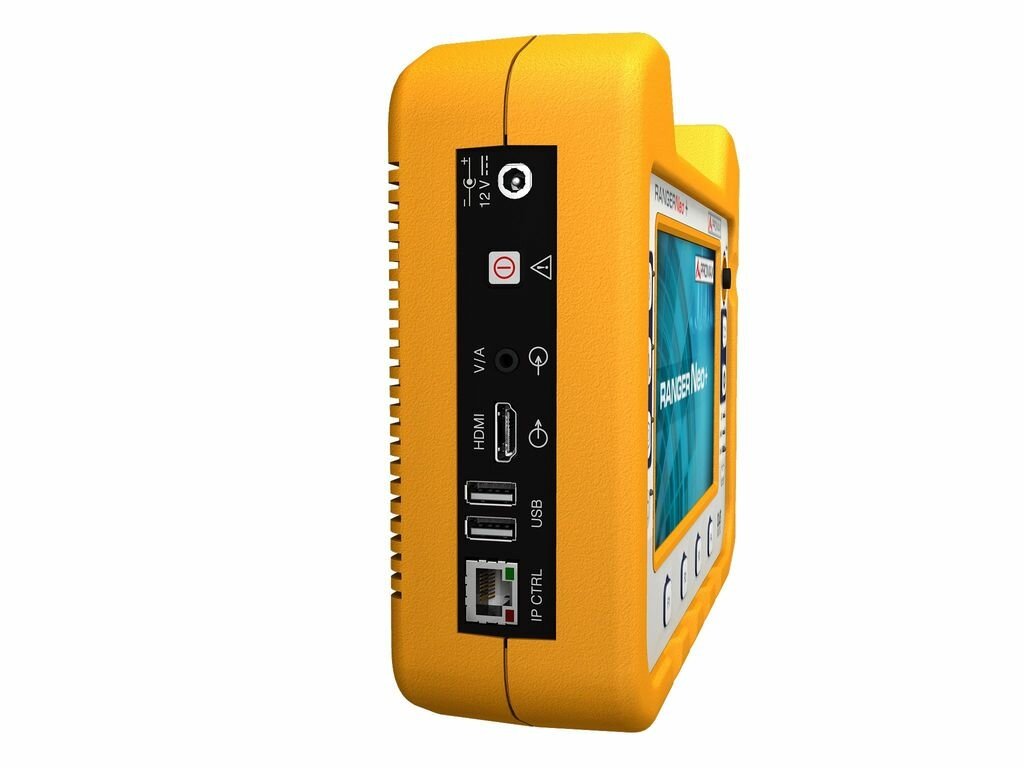

INPUTS AND OUTPUTS
Universal RF connector 75 Ω
HDMI™ output
IP input for remote control
Analogue Video/Audio input
2xUSB for data tranferring
FUNCTIONS
4K Frame grabber
Merogram
Spectrogram
Signal monitoring
Remote control (webControl)
MER by carrier
Video/Audio Streaming
SCAN + TILT
Shoulder attenuation
Constellation diagram
LTE ingress test
Dynamic echoes analysis
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast spectrum analyzer (70 ms sweep time)
MAX and MIN hold
FM RDS radio measurement and decoding
Screenshots and Datalogger for measurement reports
Beacon-Flyaways for SNG & VSAT
Wideband LNB
WiFi 2.4 GHz
LTE 1.8 GHz
OTT
Service recording
Field strength measurement
Task planner
RESOLUTION BANDWIDTHS
100, 200 kHz
1 MHz
OPTIONS
GPS Coverage Analysis
Rack assembly 19" 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.
DVB-T2/C2/S2, DSS, Dolby Digital Plus
ISDB-T/Tb
Super spectrum analyzer with Triple split display
Dynamic echoes analysis
Touch screen
HEVC H.265 decoding
Wide band LNB compatibility
Wi-Fi analyzer
webControl remote control
Merogram and Spectrogram
Fibre optics and GPS options
More than 4 hours battery time
